AfterVLX 80 Casement Window in Los Angeles, CA | Hale Windows & Doors
The VLX 80 Casement Window joins the Hale Windows & Doors lineup as a side-hinged aluminum window built around two things Los Angeles homeowners ask for constantly: bigger views and better airflow. With a profile width of just 1.97 inches, the frame nearly disappears, leaving glass to do the work. We recommend it for canyon homes in Studio City, mid-century boxes in Silver Lake, and coastal properties in Playa del Rey where the ocean breeze is the whole point of opening a window. As an authorized ViewLux installation partner, Hale Windows & Doors supplies and installs the VLX 80 across Los Angeles with warranty-safe workmanship. Call (252) 675-6980 to talk specs or schedule a measurement.
Product Overview – VLX 80 Casement Window
The VLX 80 is our go-to casement when a client wants maximum ventilation without a bulky frame eating into the glass area. Because it hinges on the side and opens outward like a door, the entire window opening becomes a vent when cranked open. Catch a breeze from any direction. That’s the functional argument. The aesthetic argument is the sightline: the 1.97-inch profile is among the slimmest aluminum extrusions we install in Los Angeles, which means more daylight and a cleaner look from inside and out.
Engineered from aluminum with a wall thickness of 0.079 inches, the VLX 80 is rigid enough for large openings without adding visual weight. Homeowners choose this series for kitchens over sinks, living rooms facing a view, and hard-to-reach spots where a crank-out operation beats lifting a sash. Architects in Los Angeles specify it for modern and contemporary projects where window walls and glass corners dominate. It also suits Spanish and Mediterranean homes when finished in Bronze or Teak Wood, colors that read warmer than raw aluminum. The hardware feels substantial, the crank operates smoothly, and the multi-point locking keeps the sash tight against the weather seal when closed. This is a window we’re confident putting our name on, installed in hundreds of Los Angeles homes since we began carrying the ViewLux line.
Technical Specifications

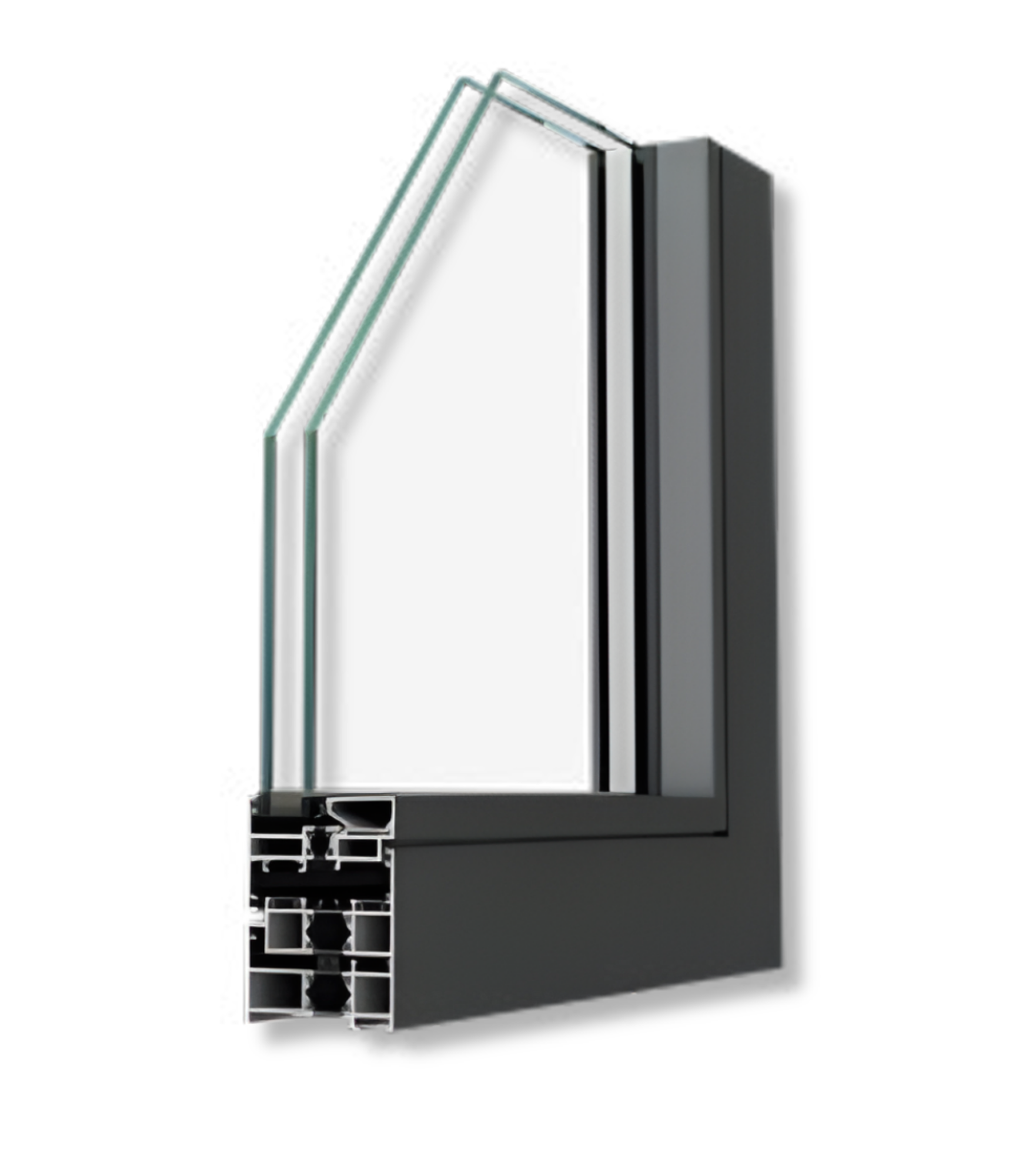

- Frame material: Extruded aluminum with thermal break
- Wall thickness: 0.079 inches
- Profile width: 1.97 inches (ultra-slim sightline)

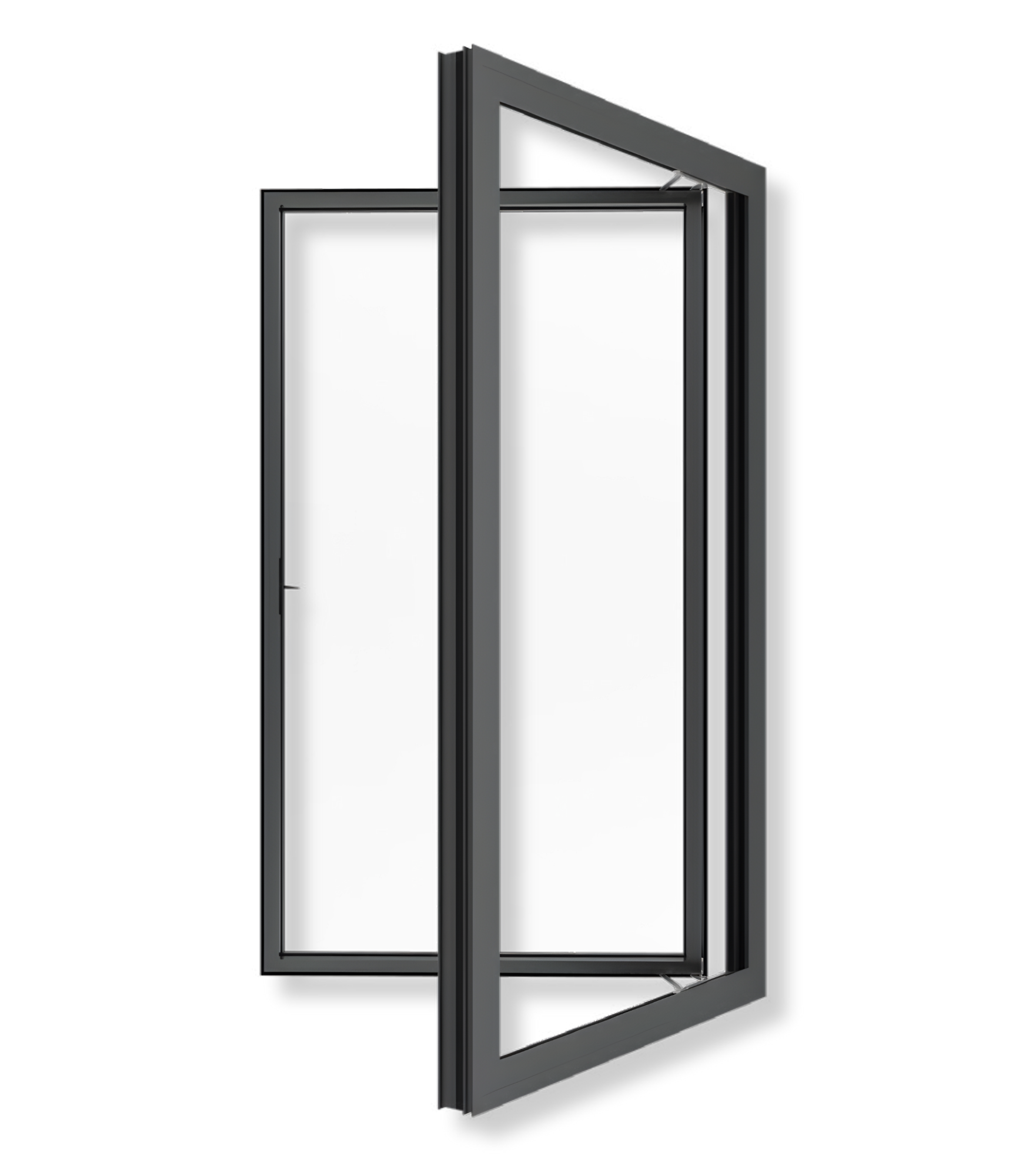

- Operation: Side-hinged casement, crank-out
- Glass options: Clear, Frosted, Low-E, Tempered, Laminated
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screen options: Fixed Screen, Retractable Screen
- Sill options: Standard Sill, Low-Profile Sill
- Glazing: Single or dual-pane configurations available, insulated glass units (IGUs) recommended for most Los Angeles applications
These specs tell the story of a window built for performance without aesthetic compromise. The aluminum shell resists warping, rot, and termite damage that plague wood windows in Southern California’s dry climate. The narrow profile is the design statement; the thermal break and gasketing are the engineering that makes it livable year-round.
Performance Features
Thermal Efficiency
The VLX 80 incorporates thermal break technology that separates the interior and exterior aluminum, reducing heat transfer through the frame. With Low-E glass selected, the window earns an NFRC-rated energy performance that helps keep Los Angeles cooling costs in check during August heat waves in the Valley.
Acoustic Performance
Aluminum frames paired with laminated glass cut exterior noise meaningfully. We recommend this combination for homes facing busy corridors like Sepulveda, Sunset, or the 101, where traffic hum is constant. Sound control ratings improve noticeably over standard single-pane aluminum.
Airtightness & Weather Seal

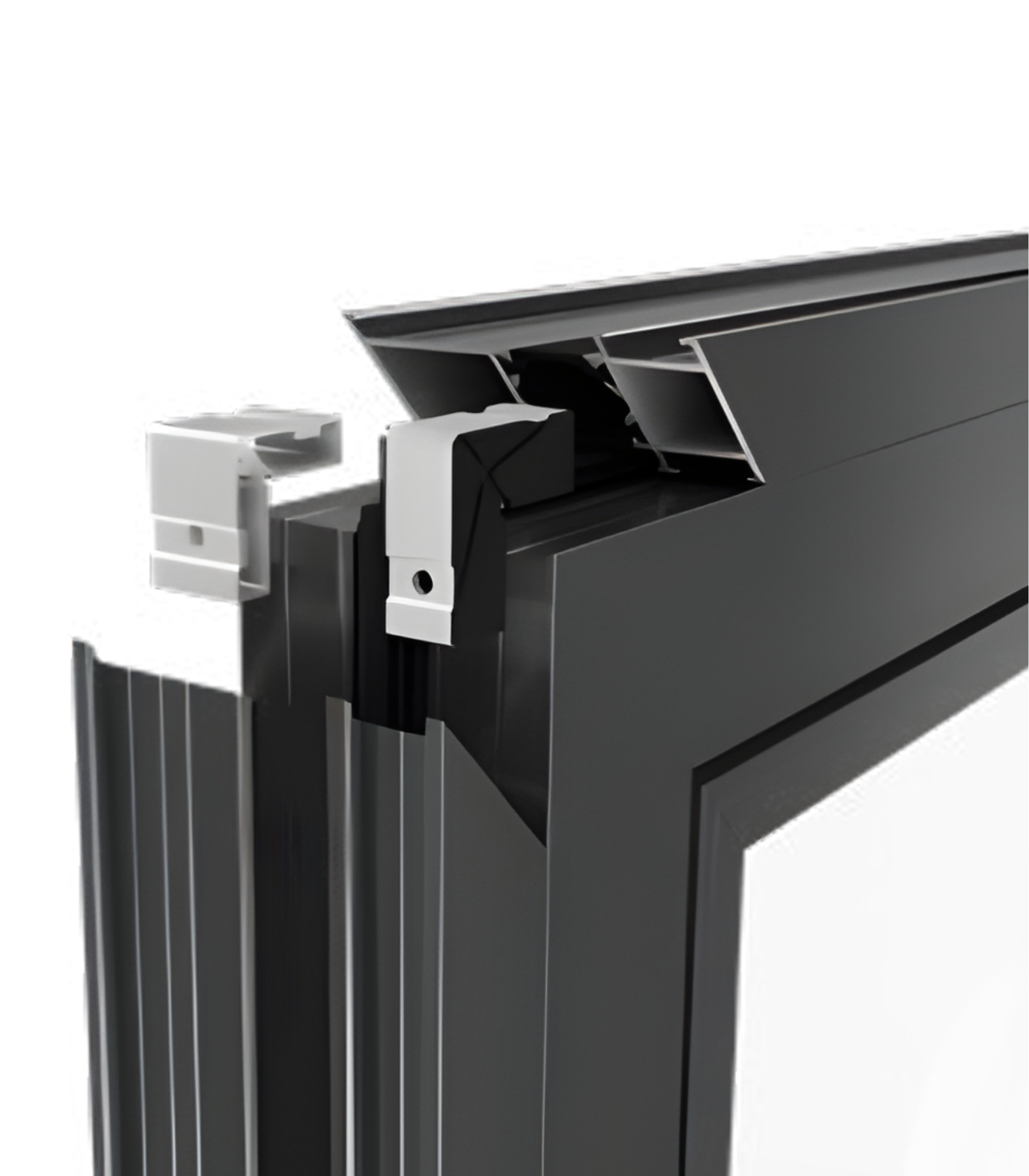

Compression gasketing around the sash and the multi-point lock pull the sash tight to the frame. Airtightness matters in Los Angeles as much for keeping conditioned air in as for keeping dust out. Homes in Burbank and Glendale near the hills see real dust intrusion with older sliders; the casement seal is a different class.
Waterproofing
We install every VLX 80 Casement per AAMA 2400/2410 guidelines, using AAMA 812 low-expansion foam sealant on all perimeter joints. That means no voids, no gaps, no water path. The frame’s drainage design sheds water outward before it ever has a chance to collect. Rain is rare in Los Angeles, but when the winter storms hit, proper perimeter sealing is the difference between a dry wall and a nightmare.
Wind Resistance
The VLX 80 is wind-load rated for local climate requirements, including the gusty conditions along the coast and in the high desert reaches of Los Angeles County. The 0.079-inch wall thickness gives the extrusion the stiffness to stand up to pressure without flexing or whistling. For canyon homes in Malibu or Topanga, we specify laminated impact-rated glass to meet stricter wind and debris concerns.
Security & Hardware

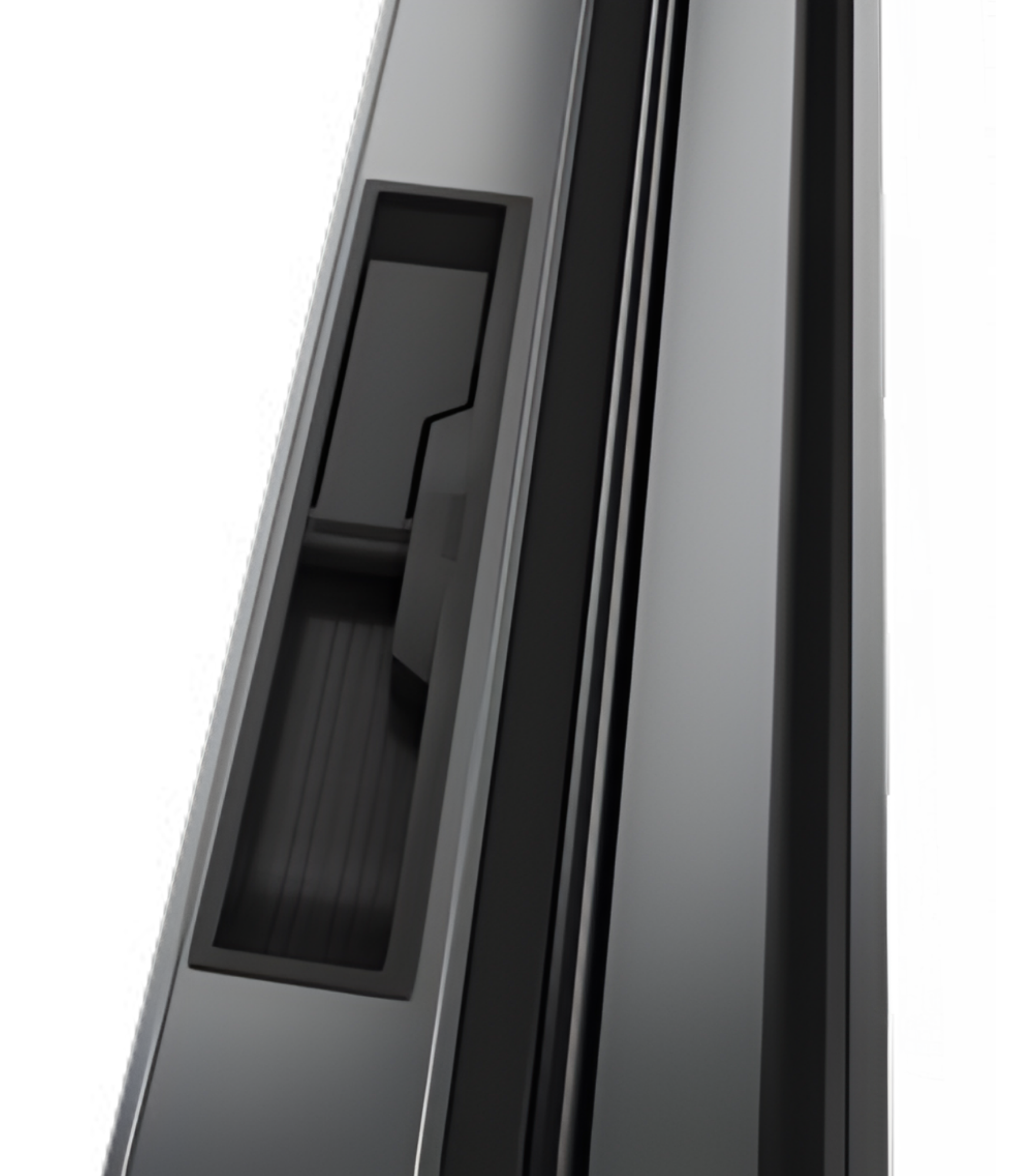

Multi-point locking hardware engages at multiple points along the frame, not just a single latch like older casements. The crank mechanism and lock are integrated so a closed window is automatically a locked window. Aluminum resists forced entry better than vinyl, and the VLX 80’s hardware stands up to daily use without loosening over time.
Color & Glass Options
Six finish options cover most architectural directions in Los Angeles. Premium Black anchors modern and industrial homes, and it’s the top choice for new builds in Echo Park and Highland Park. Pure White suits Spanish Revival and traditional homes in Pasadena and San Marino. Anodized Silver is the honest, metallic look mid-century purists want. Bronze is warmer and pairs well with wood accents in Craftsman homes. Champagne is a soft neutral that flatters stucco facades. Teak Wood mimics natural wood grain for homeowners who love the warmth of wood without the maintenance, a smart trade-off anywhere in Los Angeles where sun exposure destroys painted wood within a decade.
On glass, Clear is the budget choice but sacrifices thermal performance. Frosted makes sense for bathroom casements and street-facing windows where privacy matters without curtains. Low-E is our default recommendation in Los Angeles: it rejects solar heat while transmitting visible light, and it earns its cost back over the window’s life through lower air conditioning load. Tempered glass satisfies safety glazing requirements near doors and low sills. Laminated glass adds impact resistance and acoustic damping, and we recommend it for Westside homes near the airport flight path or for any ground-floor window facing the street.
Screens are worth a decision up front. The Fixed Screen is the economical pick and stays permanently in place. The Retractable Screen slides out of sight when the window is closed or when you want an unobstructed view, a feature homeowners in view-facing hillside homes in Los Feliz immediately understand.
Installation by Hale Windows & Doors in Los Angeles
We’ve replaced enough windows in Los Angeles to know that the installation decides whether a great window stays great. The VLX 80 is only as good as the rough opening it’s set into and the perimeter seal around it. That’s why Hale Windows & Doors runs every casement installation through the same process, start to finish.
On install day, we start with a pre-install inspection of the rough opening: framing condition, moisture intrusion, and measurement verification against the ordered window. Then we set the frame level, plumb, and square using shims, not foam. A window set out of square will bind at the crank and leak at the corners, and those failures show up years later. We secure the frame to the structure, applying AAMA 812 low-expansion foam sealant continuously around the entire perimeter joint, with full compliance to AAMA 2400/2410 installation standards. The sealant fills voids that would otherwise channel air and moisture. Finally, we run a water test on surrounding areas before reinstalling trim and cleaning the site. The install crew leaves the room as clean as they found it, window operating smoothly, hardware adjusted.
One thing to understand clearly: an improperly installed window voids the manufacturer warranty. ViewLux covers defects in materials and workmanship, but that coverage assumes correct installation per their specified standards. When Hale Windows & Doors installs the VLX 80, you have one accountable partner for the product and the install. That matters in Los Angeles, where building codes and energy standards (Title 24) evolve constantly, and where correct flashing at stucco and wood siding transitions prevents the slow water damage that shows up as mold and rot years later.
Frequently Asked Questions – VLX 80 Casement Window
Custom VLX 80 orders from ViewLux typically arrive in 4 to 8 weeks, depending on finish and glass selections. Standard configurations in popular sizes arrive faster. We confirm the current lead time when we quote your project. Call (252) 675-6980 to check availability for your window size.
VLX 80 Casement Windows with qualifying Low-E glass may qualify for federal energy efficiency tax credits if they meet the applicable Energy Star criteria in effect at the time of purchase. We recommend confirming the current credit requirements with your tax advisor, and we’ll provide the NFRC data you need to verify eligibility. Call (252) 675-6980 for the current certified ratings.
ViewLux provides a manufacturer warranty on the VLX 80 covering materials and workmanship, with the exact duration and terms depending on finish and glass selections. Our installation workmanship is covered separately by Hale Windows & Doors. Both warranties depend on correct installation, which is why we install every window to AAMA standard ourselves. Call (252) 675-6980 and we’ll walk you through the warranty text before you order.
Yes. The VLX 80 is manufactured to order in custom sizes for your specific rough openings. Los Angeles homes, especially pre-1970 builds, rarely have standard-size window openings. We measure each opening individually and order each window to fit. Call (252) 675-6980 to schedule a free on-site measurement and get exact pricing for your sizes.
Aluminum frames need less maintenance than wood, but in Los Angeles’s dry, dusty climate they benefit from cleaning twice a year with mild soap and water, plus occasional lubrication of the crank mechanism and hinges. Avoid abrasive cleaners that scratch the powder-coated finish. Coastal homes in Santa Monica and Pacific Palisades should rinse frames more frequently to remove salt residue. We include care instructions with every installation.
Get a Quote – VLX 80 Casement Window in Los Angeles
If the VLX 80 Casement Window sounds like the right window for your Los Angeles home, the next step is a free on-site measurement. We’ll verify your rough openings, review finish and glass options in person, and provide a written line-item quote. Call Hale Windows & Doors at (252) 675-6980 to schedule your measurement or ask about current ViewLux lead times.
Written by the team at Hale Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
