VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Los Angeles, CA | Hale Windows & Doors

The VLX 100 Swing / Entry Door is a modern aluminum single entry door with a slim 2.56-inch profile and multi-point locking hardware. Los Angeles homeowners choose it when they want clean sightlines, strong thermal performance, and a door that feels substantial without looking heavy. Hale Windows & Doors is an authorized ViewLux installation partner serving Los Angeles and surrounding neighborhoods, which means you get the factory product installed to the manufacturer’s exact specification. Call us at (252) 675-6980 to talk through options or schedule a free on-site measurement.

Call (252) 675-6980

Product Overview – VLX 100 Swing / Entry Door

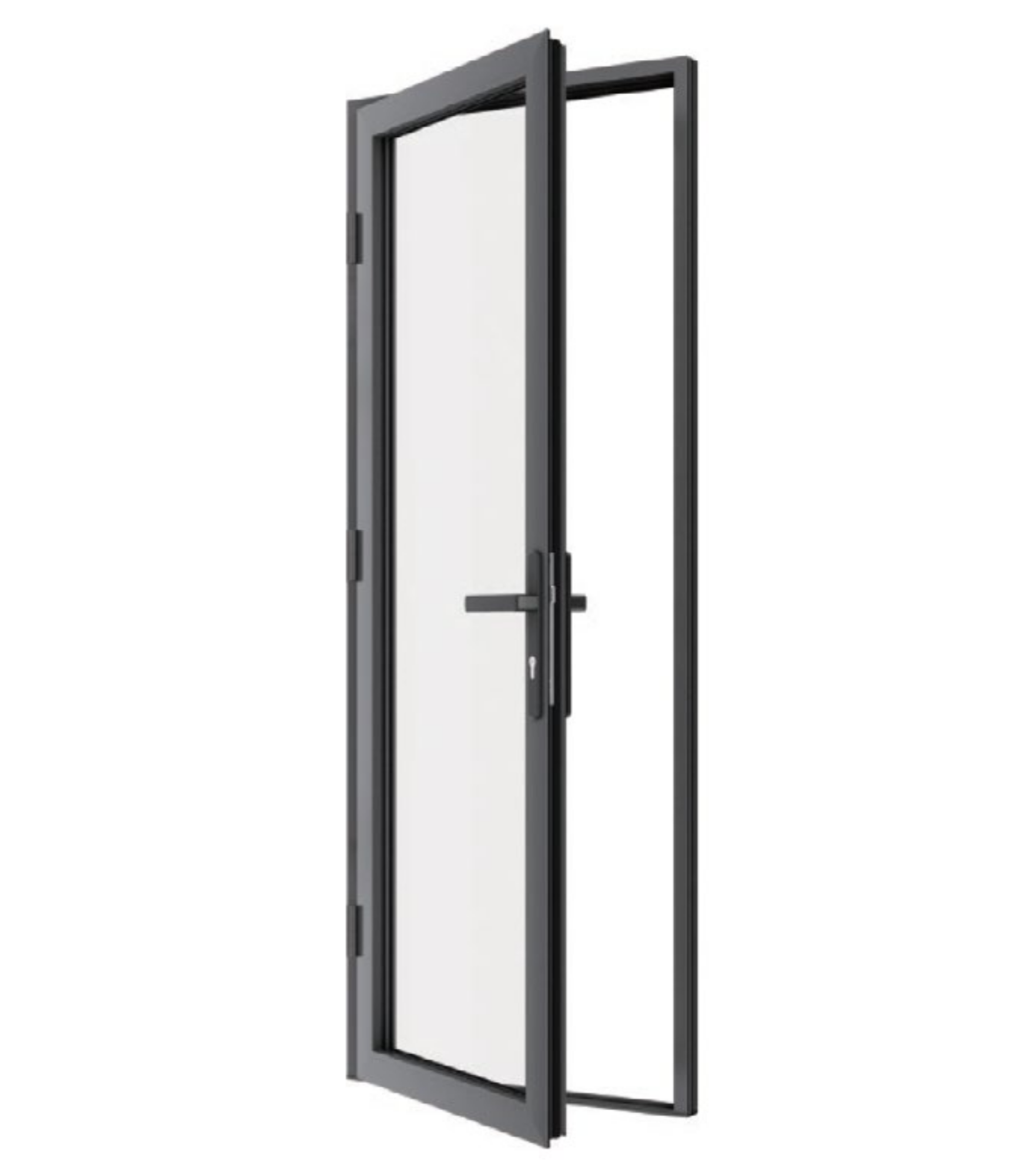

The VLX 100 is built around a simple idea: an entry door should disappear into the architecture, not fight it. The frame profile measures 2.56 inches wide, which is narrower than most aluminum entry systems on the market. That slim frame maximizes glass area and keeps sightlines clean. The door is a single entry configuration, meaning one operable panel, which works well for front entries, side entries, and patio access doors in Los Angeles homes.

What separates this door from budget aluminum systems is the wall thickness. At 0.098 inches, the aluminum extrusion is noticeably thicker than the 0.062-inch or 0.078-inch profiles you’ll find on lower-cost doors. That extra material translates to a stiffer frame, less flex over time, and better long-term performance in a city like Los Angeles where doors are exposed to strong sun and, depending on the neighborhood, salt air near the coast.

The multi-point locking system is standard. When you lift the handle, locking points engage at multiple positions along the frame, not just at the latch. That makes the door harder to force and helps the panel seat evenly against the weatherstripping, which improves the air seal. Buyers who compare the VLX 100 against wood or vinyl entry doors typically do so because they want a modern, durable door that won’t warp, swell, or need repainting.

Technical Specifications

Here is what the VLX 100 Swing / Entry Door offers. Every option below is available through Hale Windows & Doors in Los Angeles.

• Frame wall thickness: 0.098-inch aluminum extrusion
• Profile width: 2.56 inches, engineered for a minimalist frame look
• Maximum panel span: Up to 48 inches wide for a single swing panel
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or none

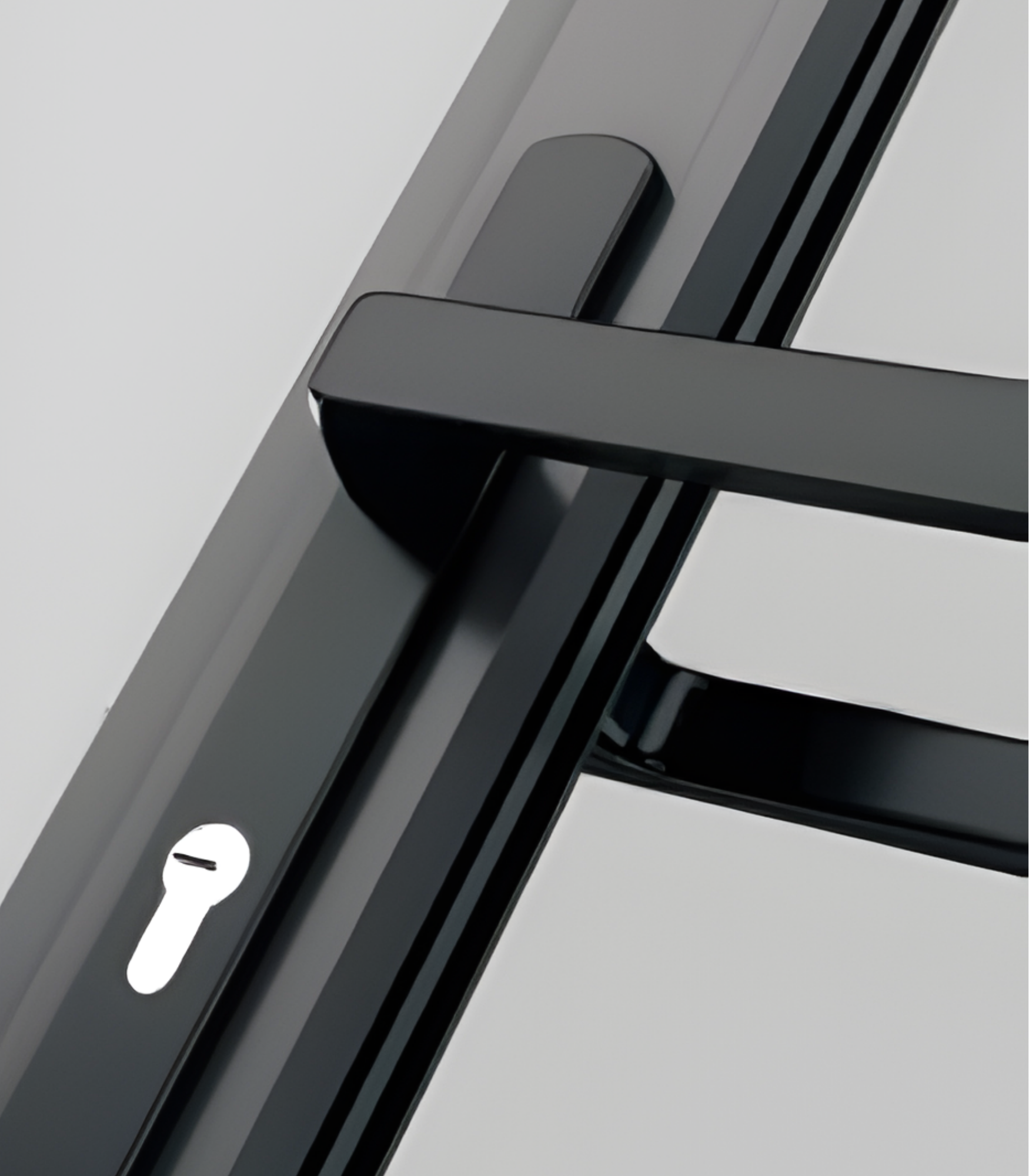

• Hardware: Multi-point locking, factory-installed
• Performance standards: AAMA 2400/2410 installation compliance, NFRC-rated thermal break technology
• Sealant standard: AAMA 812 low-expansion foam at all perimeter joints

Performance Features

Thermal Efficiency – The VLX 100 uses a thermal break that separates the interior and exterior aluminum surfaces. This reduces heat transfer through the frame, which matters in Los Angeles during summer months when west-facing entry doors can absorb full afternoon sun. NFRC-rated performance data is available for the specific glass package you choose. Low-E glass further reduces solar heat gain while preserving natural light.

Acoustic Performance – Laminated glass is the upgrade we recommend most often for Los Angeles homes near busy streets, freeways, or flight paths. The interlayer in laminated glass dampens sound transmission noticeably compared to standard tempered glass. Pair that with the multi-point locking system that seats the panel firmly against the weatherstripping, and you get a genuinely quieter entry.

Airtightness & Weather Seal – Air leakage is where most entry doors fail over time. The VLX 100 uses compression weatherstripping that runs continuously around the frame. The multi-point locks pull the panel tight against that seal at every point, not just at the handle. In Los Angeles, where temperature swings between day and night can be 30 degrees or more, a tight air seal keeps conditioned air inside where it belongs.

Waterproofing – Aluminum doesn’t absorb water, but the installation is what determines whether a door leaks. Hale Windows & Doors installs every VLX 100 using AAMA 812 low-expansion foam sealant at all perimeter joints, then we water-test the opening before we call the job done. That’s the difference between a door that drains properly and one that stains drywall six months after installation.

Wind Resistance – Los Angeles building codes require exterior doors to meet specific wind-load ratings depending on the exposure zone. The VLX 100 is wind-load rated for local climate requirements, and laminated glass adds impact resistance for homes in areas where flying debris is a concern. We verify code requirements for your specific address before ordering.

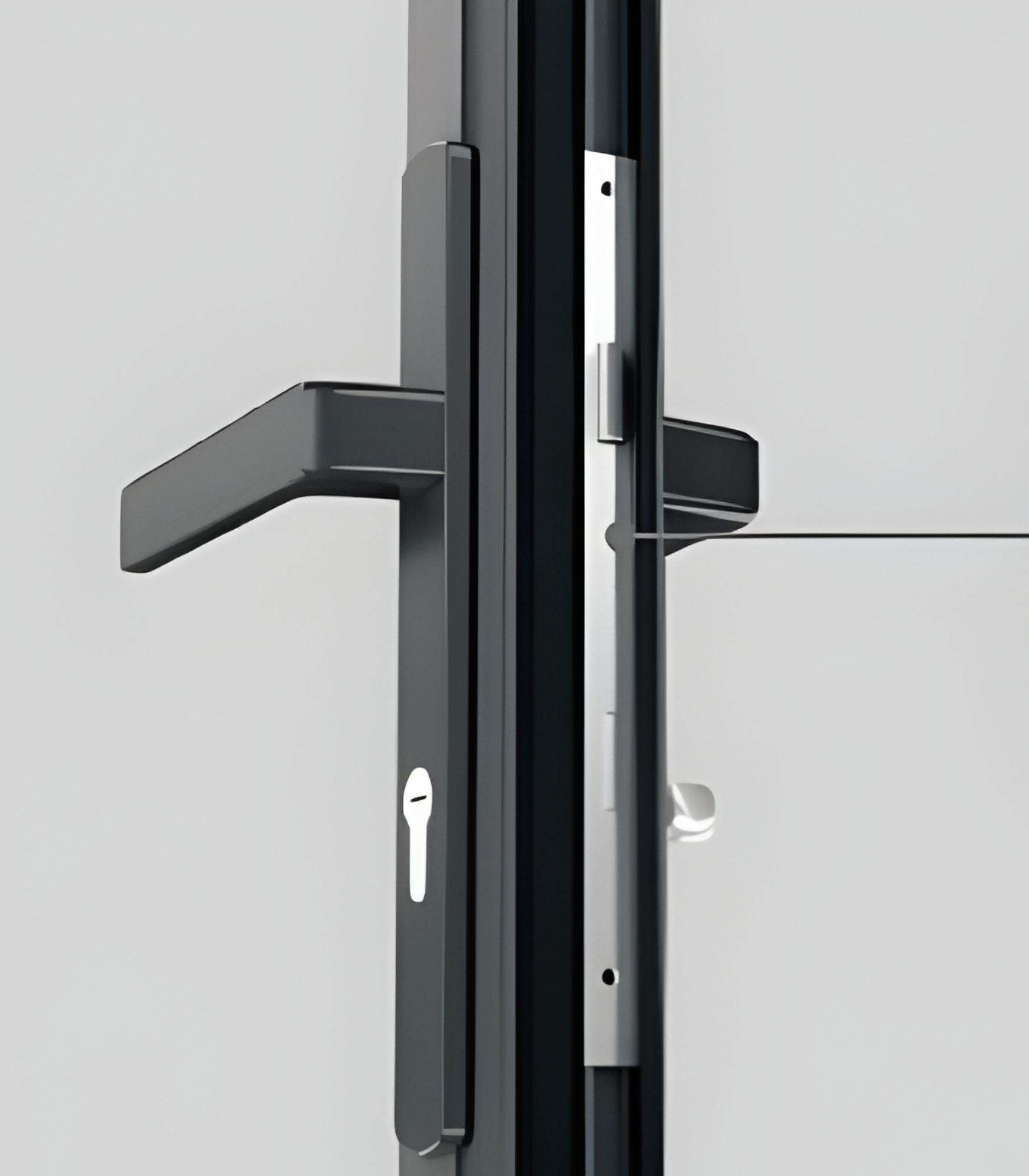

Security & Hardware – The multi-point locking system engages at the top, bottom, and center of the door with a single handle turn. That’s three times the contact points of a standard deadbolt door. Combined with a 0.098-inch aluminum frame and your choice of laminated glass, the VLX 100 is a meaningful security upgrade for any Los Angeles entry.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black and Pure White are the most popular choices in Los Angeles right now, particularly for contemporary and mid-century homes in neighborhoods like Silver Lake, Echo Park, and Venice. Anodized Silver has a raw, industrial feel that suits loft-style spaces. Bronze reads warmer and works well on Spanish-style and transitional homes. Champagne is a soft metallic that blends with warm interior palettes. Teak Wood is a textured finish that gives you the look of wood grain with the durability of aluminum, which is ideal for Los Angeles homes where real wood doors fade and crack under sun exposure.

Glass selection depends on what you need the door to do. Clear glass maximizes light and visibility. Frosted glass diffuses light while blocking direct sightlines, good for entries facing a street or neighbor. Obscure glass offers more privacy. Low-E glass is the energy-performance choice for sun-exposed doors. Tempered glass is standard safety glass. Laminated glass adds impact resistance and acoustic dampening, and we recommend it for Los Angeles homes near busy corridors like Wilshire, Sunset, or the 405.

Installation by Hale Windows & Doors in Los Angeles

How a door is installed matters as much as how it’s built. A high-quality aluminum door installed incorrectly will leak, bind, and eventually fail at the hinges or the lock. That’s why Hale Windows & Doors handles every Los Angeles installation in-house, never through subcontractors. We install to AAMA 2400/2410 standards, which is the industry reference for proper fenestration installation.

Our process starts with a pre-installation inspection of the rough opening. We check the framing dimensions, verify the opening is square, and identify any structural issues before the new door goes in. If we find rot, misaligned framing, or improper flashing, we address it before installation, because shimming over a problem doesn’t fix it.

During installation we set the door level, plumb, and square. The frame is anchored to the rough opening, then we apply AAMA 812-certified low-expansion foam sealant at every perimeter joint. That foam seal does two jobs: it seals against air and water infiltration, and it won’t warp the frame as it cures. After the door is set, we water-test the installation, adjust the multi-point locks so they engage cleanly, and walk you through operation and maintenance before we clean up the site.

One thing Los Angeles homeowners should know: installing this door yourself or hiring a general handyman typically voids the manufacturer warranty. ViewLux warranties the product when it’s installed by an authorized partner following their installation guidelines. Hale Windows & Doors is that partner. We pull permits when required by Los Angeles building codes, and we stand behind the installation with our own workmanship warranty.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Los Angeles

Ready to see what the VLX 100 looks like on your home? Hale Windows & Doors offers free on-site measurements and written line-item quotes for Los Angeles homeowners. We’ll bring samples, confirm your rough opening dimensions, and give you a fixed price before anything is ordered. Call (252) 675-6980 to schedule your estimate.

Written by the team at Hale Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
