VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Los Angeles, CA | Hale Windows & Doors

The VLX 80 Fixed / Picture Window is a floor-to-ceiling glass wall that doesn’t open, doesn’t tilt, and doesn’t intrude. It’s engineered for one thing: the maximum possible view with the minimum possible frame. Homeowners in Los Angeles choose this window for hillside living rooms facing the San Gabriels, for mid-century restorations in Silver Lake, for new builds in Venice where natural light is the whole point. Hale Windows & Doors installs the VLX 80 as an authorized ViewLux partner, which means you get the product at full warranty strength and an installation crew that knows Los Angeles building conditions. Call (252) 675-6980 for pricing and availability.

Call (252) 675-6980

Product Overview – VLX 80 Fixed / Picture Window

The VLX 80 Fixed / Picture Window is what you specify when the view is the assignment. It’s a non-operable window, which is a deliberate choice: no sashes, no hinges, no crank mechanisms, no hardware visible anywhere. Fixed windows are the most energy-efficient window type because they have no moving parts to leak air, and the VLX 80 pushes that advantage hard with a slim 1.97-inch profile that puts almost the entire opening to work as glass.

Architecturally, this window belongs in modern and contemporary Los Angeles homes. Think Strait Lane estates in Beverly Hills, glass-box moderns in the Hollywood Hills, and the clean rectangular apertures that define the SoCal indoor-outdoor aesthetic. But it also works in traditional homes when used as a statement window, a stairwell light source in Hancock Park colonials, or a picture window framing a mature oak in Pasadena.

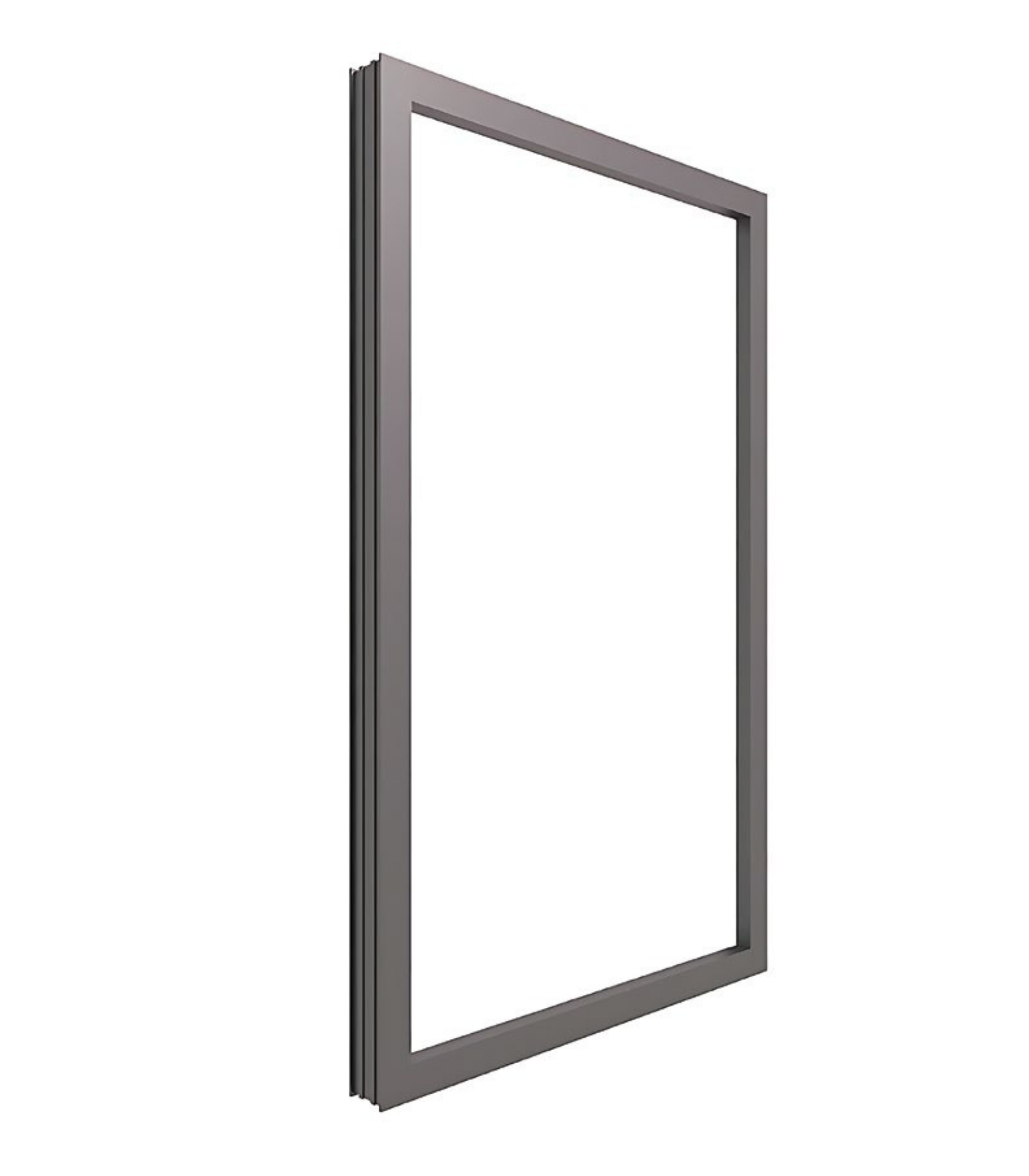

The frame is extruded aluminum with a 0.079-inch wall thickness. That’s a heavy wall, and it matters because aluminum flexes under its own weight on wide spans. A thin extrusion sags over a 10-foot opening. This one holds its line. The VLX 80 accommodates widths up to 120 inches, which means Hale Windows & Doors can install it as a true panoramic wall. We’ve put these in Los Angeles living rooms where the entire west-facing wall is one piece of glass. At sunset, there’s nothing between you and the Pacific but engineered aluminum no thicker than two stacked quarters.

We sell a lot of these to homeowners who have tried big-box vinyl and felt the difference. Aluminum frames don’t warp in Los Angeles heat, don’t soften under UV, and don’t develop that chalky white oxidation vinyl gets after ten years of sun. The VLX 80 is a long-term window, and we back the installation accordingly.

Technical Specifications

• Profile width: 1.97 inches of visible frame. Slim enough to read as “all glass,” deep enough to carry a 120-inch span without deflection.
• Frame wall thickness: 0.079 inches of extruded aluminum. Heavier than most residential aluminum systems, which is why we can span wider openings safely.
• Maximum span: Up to 120 inches wide on a single fixed unit. Beyond that, we join units with mullions or use a larger commercial series.
• Configuration: Fixed (non-operable). No sash. No screen required.
• Glass options: Clear, frosted, low-emissivity (Low-E), tempered, laminated, gray tint, black tint. Available in single, double, or triple-glazed assemblies depending on performance targets and code requirements.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood grain. All finishes are factory-applied, not field-painted.
• Performance standards: Fabricated and installed to meet NFRC-rated thermal performance, AAMA 2400/2410 installation criteria, and local wind-load requirements for Los Angeles exposure categories.
• Glazing system: Dry-glazed with wedge gaskets. No exterior glazing beads to collect water or fail over time, and no putty to re-caulk every few years.

Performance Features

Thermal Efficiency. The VLX 80 uses a polyamide thermal break that separates the interior and exterior aluminum faces. Without it, an aluminum frame is a heat conductor, and you’d feel the Los Angeles summer on the inside face of the frame. With the break plus Low-E glass, the assembly carries an NFRC-rated U-factor that meets California Title 24 energy requirements in most climate zones.

Acoustic Performance. Fixed windows seal continuously around the glass perimeter, with no operable sash to leak sound. That’s a significant advantage if your Los Angeles home faces a busy arterial like Ventura Boulevard, Wilshire, or Sunset. Adding laminated glass drops decibel transmission further and is the go-to spec for bedrooms near LAX flight paths or freeways.

Airtightness & Weather Seal. Every glazing joint on the VLX 80 is dry-gasketed, and the frame is joined with continuous seals rather than caulk-only connections. What this means in practice: no drafts at the corners, no dust migration along window sills during Santa Ana wind events, and stable indoor air quality.

Waterproofing. The VLX 80’s sill and head are designed for positive slope drainage. Water that hits the glass runs down into the frame’s drainage path and exits through weep systems rather than pooling against the glass edge. Hale Windows & Doors also installs a low-expansion AAMA 812 foam sealant around every perimeter joint, which standardizes the air and water barrier. That’s a step most Los Angeles installers skip, but it changes how a window performs over two or three decades.

Wind Resistance. Los Angeles building code requires windows to withstand specific design wind pressures depending on the property’s exposure, whether it’s a hillside in Mount Washington, a coastal bluff in Malibu, or a flatland lot in Westchester. The VLX 80, with fixed glazing and a reinforced mullion system on wide spans, is rated for these loads and can be engineered with impact-rated laminated glass where code or insurance requires it.

Security & Hardware. There’s no hardware to fail because there’s no hardware. That’s the fixed-window advantage. For added peace of mind, laminated glass holds together when shattered, and tempered glass crumbles into small, less dangerous pieces. Clients in Los Angeles who live at street level often pair the VLX 80 with laminated glass and a low profile as a visual deterrent with zero curb-appeal cost.

Color & Glass Options

The VLX 80 comes in six factory finishes. Premium Black is the current bestseller for modern Los Angeles homes, black frames against white interior walls, a close match to the steel window look without the steel maintenance. Pure White keeps the frame visually quiet and works on Spanish revival homes in Los Feliz and Santa Monica bungalows. Anodized Silver is the classic commercial aluminum finish: bright, neutral, and architectural. Bronze reads warm and grounded, which suits hillside homes with wood ceilings. Champagne is a softer alternative to goldtone frames, and Teak Wood grain offers the wood-window look with aluminum’s durability. None of these require repainting.

Glass selection depends on what the window faces. Clear glass maximizes visible light transmission and true color, the usual pick for protected orientations. Low-E is our default recommendation in Los Angeles because solar gain through a large picture window adds real cooling load, and Low-E catches that heat before it enters the room. Gray and black tint further reduce glare and solar heat, useful for west-facing walls in the Valley. Frosted provides privacy without sacrificing daylight, popular for bathrooms and bedroom street-facing windows. Laminated and tempered are safety and performance upgrades: tempered where code requires, laminated where you want both safety and sound control.

Installation by Hale Windows & Doors in Los Angeles

Here’s the part that decides whether a great window stays great or starts leaking in five years. The VLX 80 is only as good as its installation, and Los Angeles conditions are unforgiving. Coastal salt air, Santa Ana wind pressure, dry-dry-dry then torrential rain, Termite-prone framing, stucco and post-and-beam construction that moves. We install the VLX 80 to outperform all of it.

Every installation starts with a site inspection. We check the existing opening condition, the rough framing, the reveal depth, and whether water management at the sill is adequate. We don’t install into rot or compromised framing without addressing it first. Then we set the window level, plumb, and square, because an out-of-square frame will bind a fixed unit against its glazing gaskets and void the warranty over time. The window is anchored to Los Angeles code, and every perimeter joint gets AAMA 812 low-expansion foam sealant, which fills the air-gap and water-gap more consistently than conventional caulk. The installation itself follows AAMA 2400/2410 standards, which define how a window should be prepared, flashed, sealed, and finished for water performance.

We close every job with a water test on the sill and bottom corners, then a full interior and exterior cleanup. You’d be surprised how many Los Angeles window companies leave the old frame, the shims, and the foam shavings in your flower bed.

A crucial point: if an authorized ViewLux product is not installed by an authorized partner, the manufacturer warranty is at risk. That’s not a scare tactic; it’s standard in the window industry. A botched install also drives the window out of AAMA compliance, and in Los Angeles, an inspector can flag it on a resale inspection. For a five-figure window wall, installation quality is not the place to save a few hundred dollars.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

What is the lead time for the VLX 80 Fixed / Picture Window?
Expect 3 to 6 weeks for most configurations, depending on the current volume at the ViewLux fabricator and whether the unit requires impact-rated or triple-glazed glass. Custom finishes, oversized spans, and laminated assemblies can push that toward 7 or 8 weeks. Call (252) 675-6980 for the current production schedule; we confirm lead time in writing before you commit.

Does the VLX 80 qualify for energy tax credits?
The VLX 80 with Low-E glass and a thermally broken aluminum frame typically meets the criteria for Energy Star rated products in the Southern California region, which can qualify you for the federal energy-efficient home improvement credit. The exact tax treatment depends on your household tax situation and the glass package you select. Call (252) 675-6980 for spec sheets your tax professional can review.

What warranty comes with the VLX 80 Fixed / Picture Window?
The VLX 80 carries a manufacturer’s warranty on the frame, finish, and glass, though the exact term and coverage vary by glass type and finish selection. Hale Windows & Doors installation work is covered separately, which means one point of contact in Los Angeles if anything underperforms. Call (252) 675-6980 for specific warranty terms in writing.

Can I customize the size and shape of the VLX 80?
Yes, within the product’s engineering limits. The VLX 80 spans up to 120 inches wide, and the height limit depends on wind load and glass weight. Custom trapezoids, arcs, and rake-top shapes are possible. Rectangular is the economical default, but if your architect calls out a shaped opening, we can price it. Send your dimensions to (252) 675-6980 for a quote.

How do I maintain aluminum frames on the VLX 80?
Wash the frames and glass twice a year with mild soap and water, and keep the drainage weeps at the sill clear of debris. Los Angeles coastal homes should rinse frames more often to remove salt film. Never use abrasive cleaners or pressure washers on the finish. The gaskets and sealants are not homeowner-serviceable; if you see separation or cracking, call (252) 675-6980 before water gets a foothold.

Get a Quote – VLX 80 Fixed / Picture Window in Los Angeles

If you’re planning a new build, a remodel, or just want to replace one tired window with a view that finally does the city justice, call Hale Windows & Doors at (252) 675-6980. We’ll schedule a free on-site measurement anywhere in the Los Angeles area, talk through glass and finish options, and give you a written line-item quote with no pressure and no surprises. Ask for the VLX 80 by name.

Written by the team at Hale Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
