The VLX 138 Panoramic Sliding Door is what happens when someone decides a wall is optional. It’s a luxury, large-span aluminum slider engineered for homeowners in Los Angeles who want the line between living room and patio, or dining room and pool deck, to simply disappear. We’re talking up to 36 feet of uninterrupted glass, gliding on stainless steel bearings so smooth you can move a 400-pound panel with two fingers. Hale Windows & Doors is an authorized installation partner for ViewLux, which means you get the product at its best. Not dropped on your curb. Not subcontracted to whoever’s available. Measured, ordered, installed, and warrantied by our own crew. Call (252) 675-6980 to talk about your opening.

Call (252) 675-6980

Product Overview — VLX 138 Panoramic Sliding Door

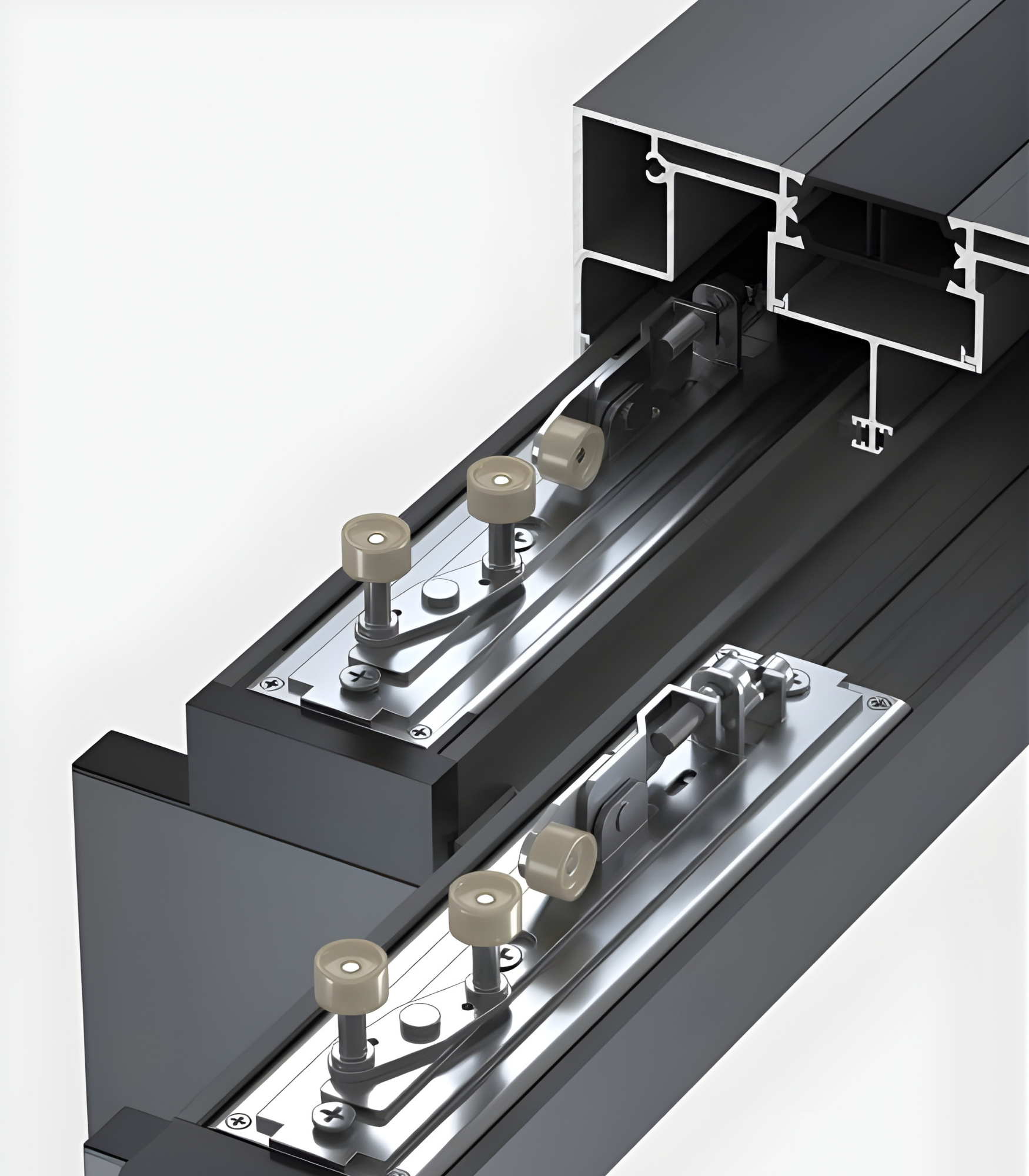

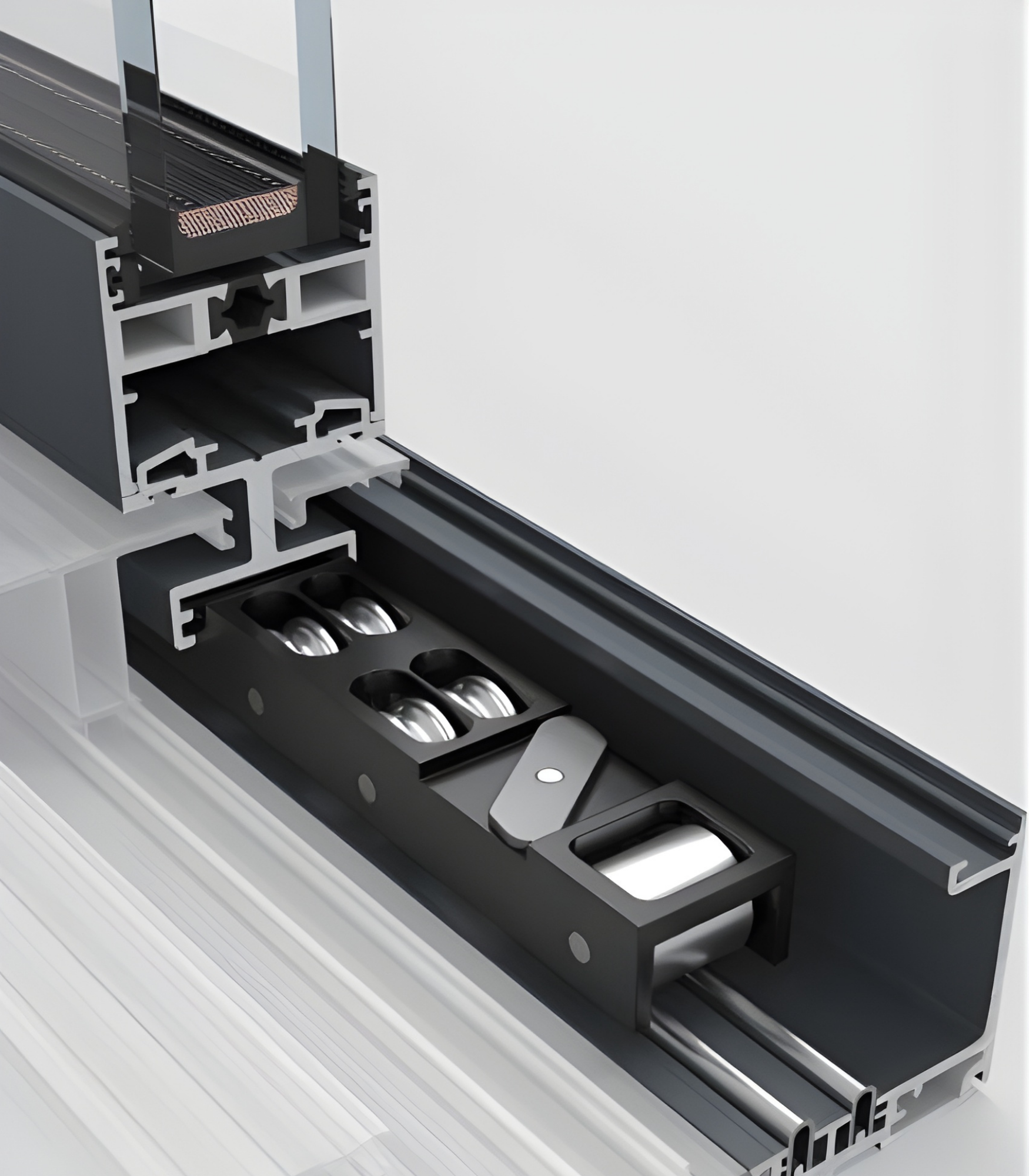

Most sliding doors are built to a price point. The VLX 138 is built to a concept: remove the barrier. The design philosophy behind this series is straightforward. Use a thermally broken aluminum profile thin enough to maximize glass area, but deep enough to handle serious spans and wind loads. Then pair it with hardware that makes daily operation feel less like dragging a panel and more like closing a car door. That’s the stainless bearing trolley system doing its job.

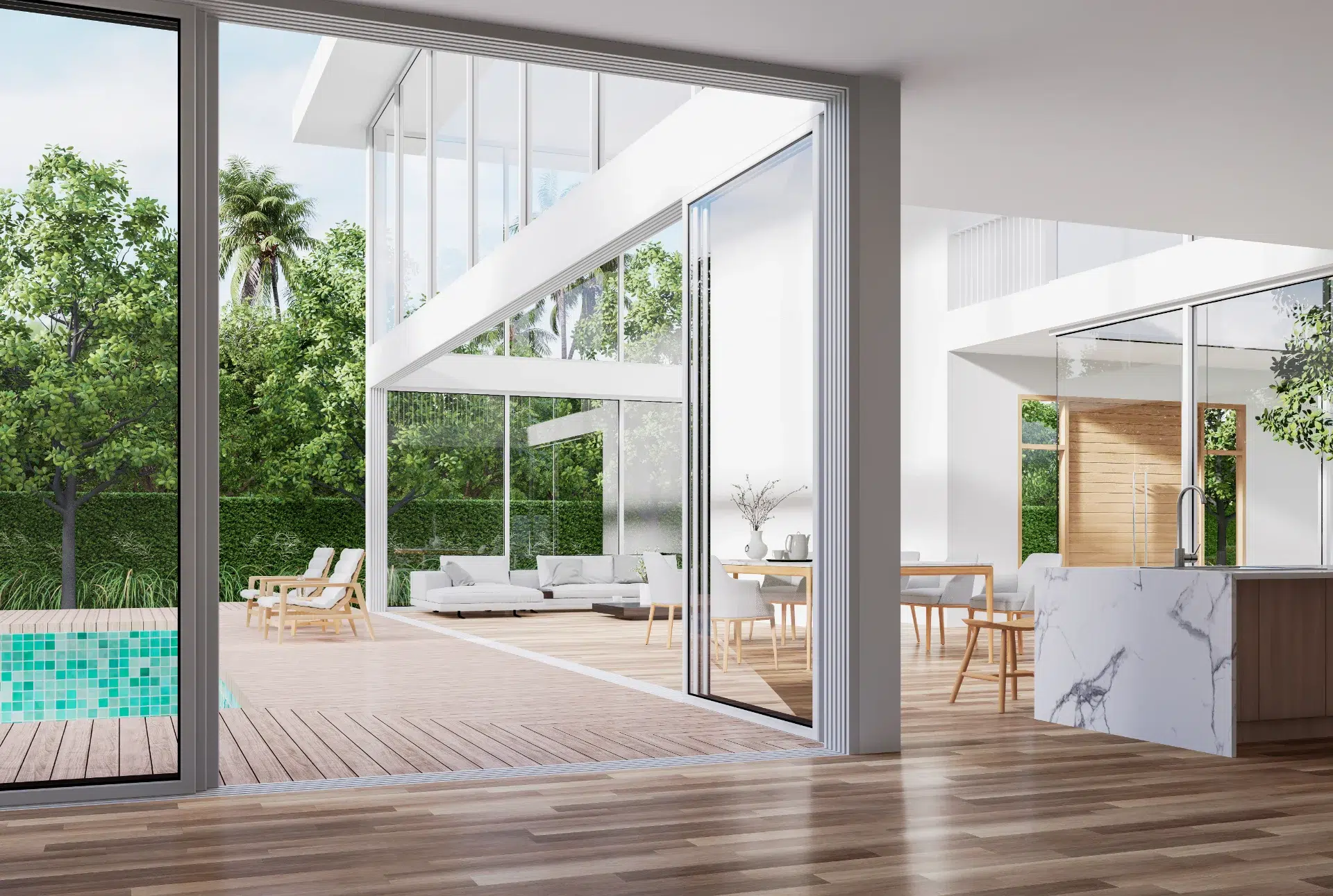

Where does it fit architecturally? Modern homes in the Hollywood Hills, mid-century ranch restorations in the Valley, new coastal builds in Playa del Rey, and everything in between. The VLX 138 works because it’s not fussy. Clean sightlines. No decorative clutter. Just a frame that gets out of the way. In Los Angeles, where indoor-outdoor living isn’t a trend but a lifestyle, this door turns a standard rear wall into a fully open corner.

Why do buyers choose this series over cheaper alternatives? Three reasons show up again and again. First, the max span. A 36-foot-wide opening with only a few panels changes how an entire floor plan feels. Second, the gliding action. Stainless bearings mean the panel doesn’t sag, drag, or chatter over time, which is the most common failure point on budget sliders. Third, the thermal package. A 0.138-inch wall thickness is substantial for a residential aluminum system, and it allows the thermal break to actually perform rather than exist on paper.

The durability side matters in our climate, too. Coastal salt air in Santa Monica or Malibu is hard on cheap hardware. The stainless components and anodized or painted finishes on the VLX 138 hold up. We’ve seen this product perform in beachfront homes where lesser doors corrode within a few seasons.

Technical Specifications

Here’s the VLX 138 broken down into the numbers and options that matter when you’re comparing systems:

• Frame wall thickness: 0.138-inch aluminum, which is on the heavier residential side and contributes directly to structural integrity over long spans.

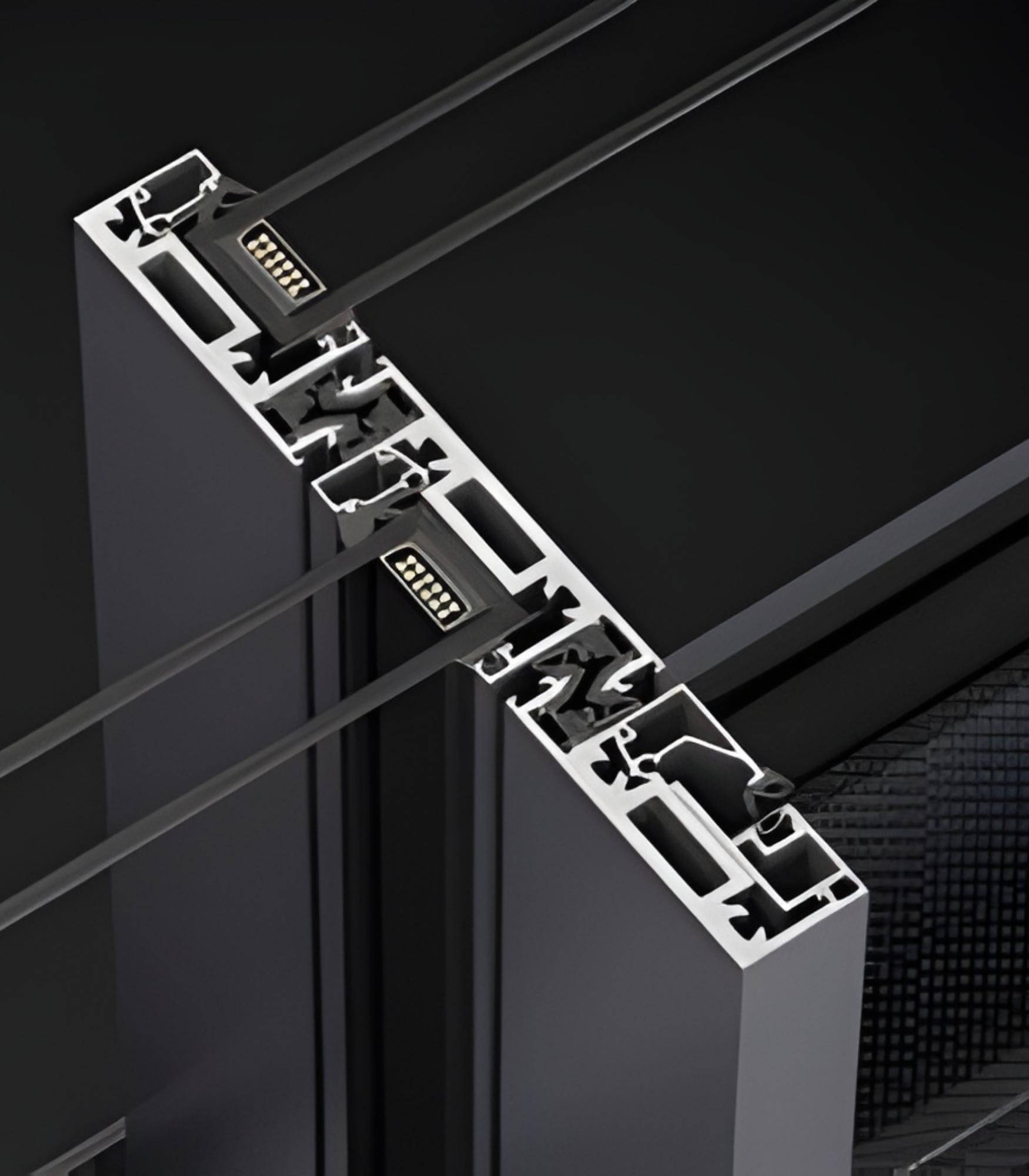

• Profile width: 1.535-inch interlock and meeting rail width. Slim enough for clean lines, deep enough for a real thermal break and multi-point hardware.
• Maximum span: Up to 36 feet wide, depending on panel count and configuration. This is what puts the “panoramic” in the name.
• Track configurations: 2-Track, 3-Track, and 4-Track systems available. More tracks mean more panel stacking options and wider clear openings.
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, and Gray Tint. All available in tempered for safety glazing compliance.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and a Teak Wood-grain finish.
• Screen options: Retractable screen and sliding screen. Retractable is the popular choice in Los Angeles because it vanishes when not in use.

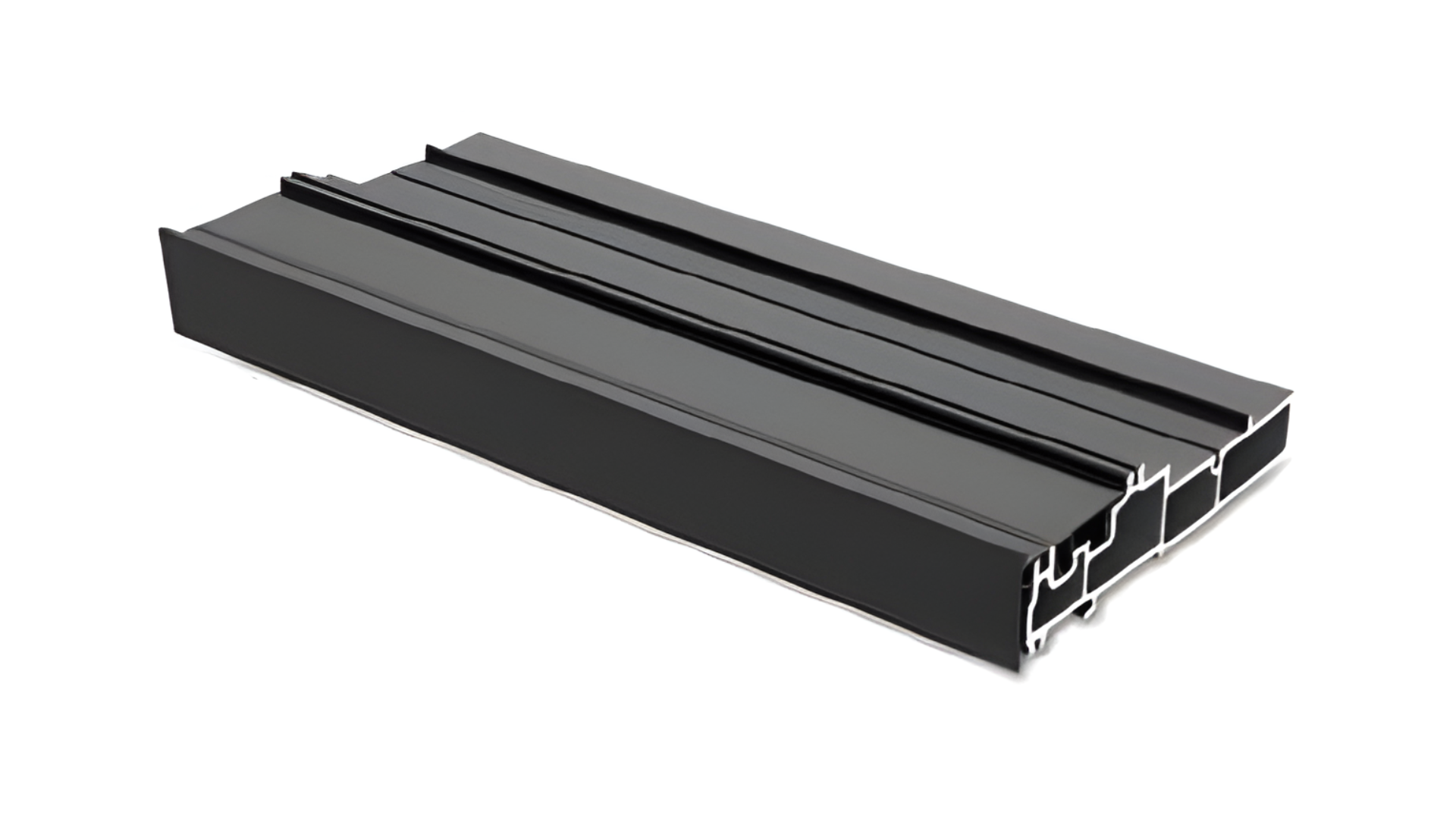

• Sill options: Flush Sill for near-zero threshold transitions, Low-Profile Sill for residential water resistance, and Recessed Sill for new construction where the track sits into the subfloor.

NFRC-rated energy performance, AAMA 2400/2410 installation compliance, and optional impact-rated laminated glass round out the performance picture.

Performance Features

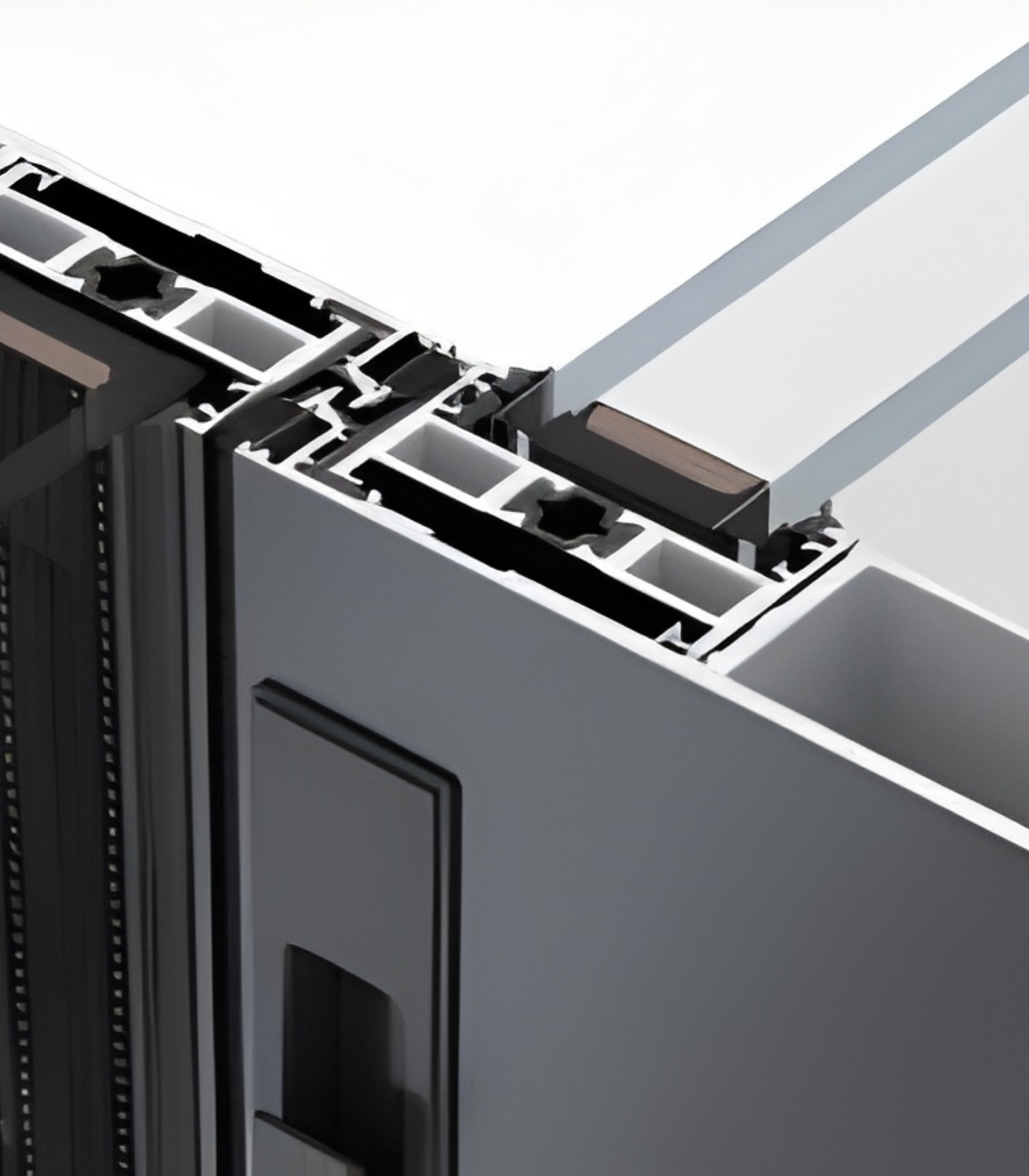

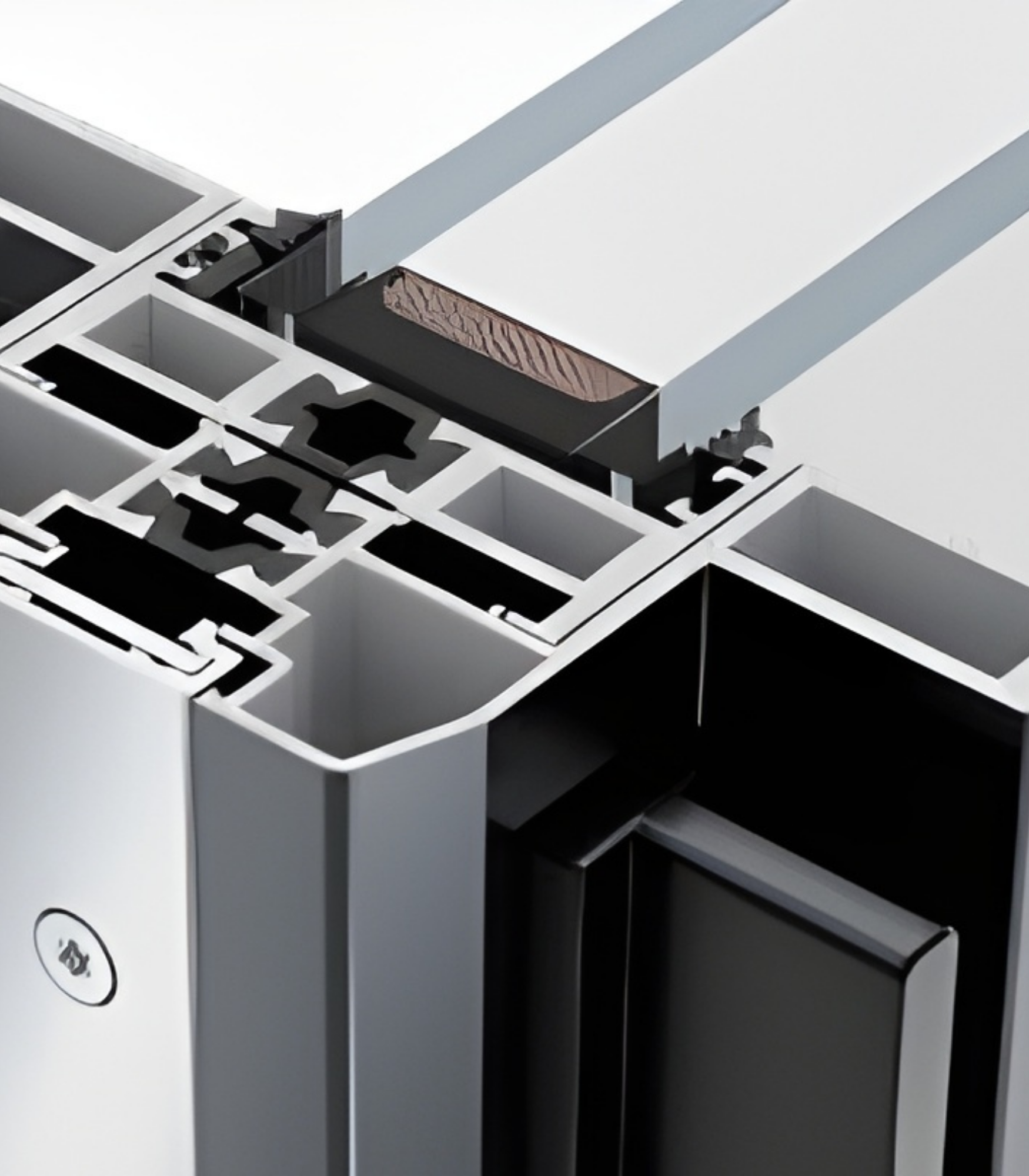

Thermal Efficiency. The VLX 138 uses a polyamide thermal break inside the aluminum profile. This breaks the conductive path between interior and exterior metal, which matters in Los Angeles summers when a dark-finished aluminum frame in direct sun can hit 160°F on the outside. Low-E glass options further cut heat gain while preserving views.

Acoustic Performance. Living near the 405, the 101, or a busy canyon road isn’t unusual in LA. The VLX 138’s full-perimeter weatherstripping and laminated glass option deliver meaningful sound reduction. We’ll walk you through glass thickness and composition for your specific noise situation during the estimate.

Airtightness & Weather Seal. Every perimeter joint gets sealed with AAMA 812 certified low-expansion foam. That’s not a suggestion, it’s how we install. Gaps around a new door are where drafts and energy loss happen. We foam every joint, interior and exterior, before any trim goes on.

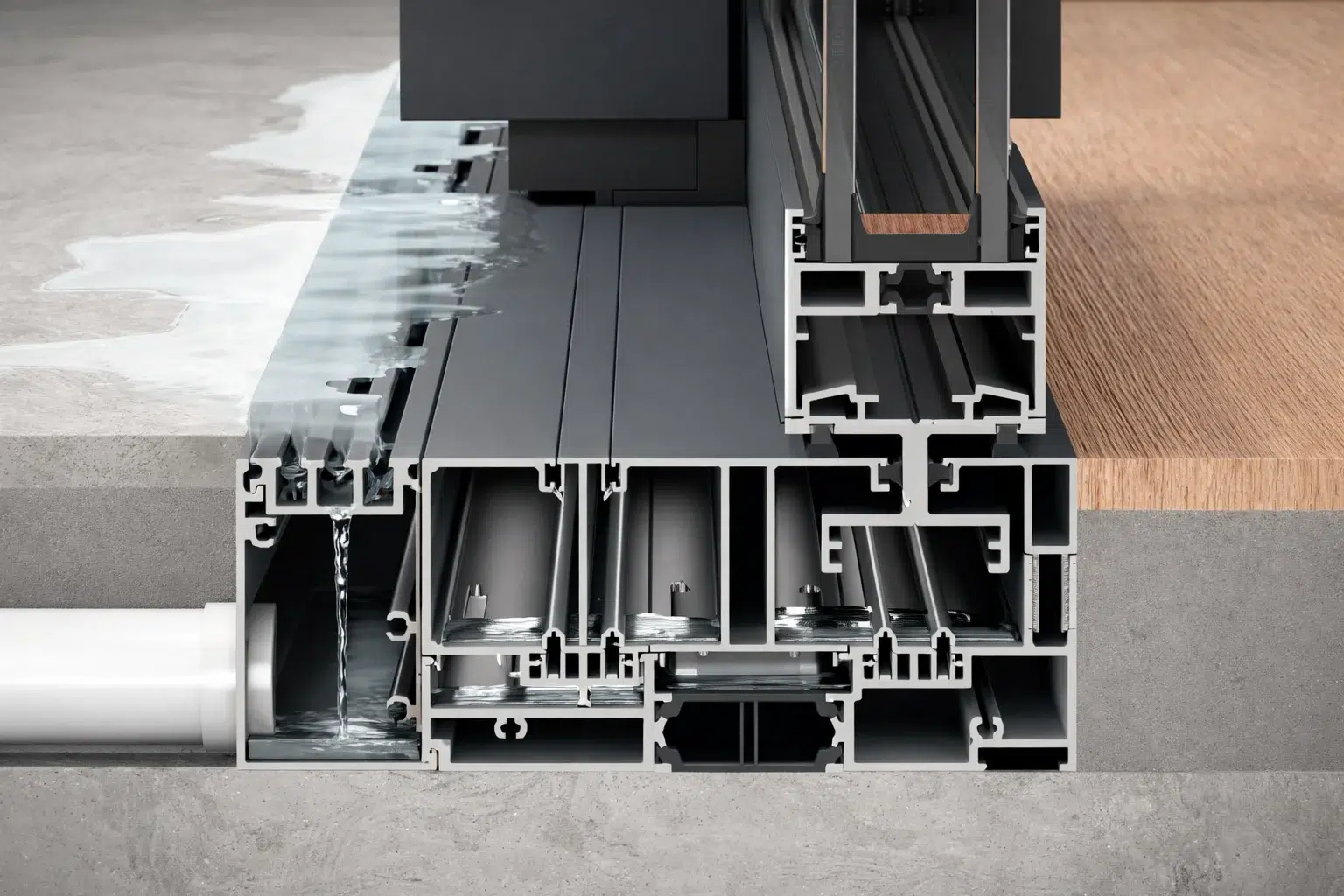

Waterproofing. The sill design includes a drainage weep system that carries water out instead of trapping it against the frame. During our installation process in Los Angeles, we run a water test on the finished opening before we call the job done. If water walks, the door isn’t finished.

Wind Resistance. Wind-load rated for the local climate requirements in Southern California. That includes the Santa Ana events that hit the foothills and canyon communities hard. For extreme exposure zones or brush-prone areas, impact-resistant laminated glass is available and should be on your radar.

Security & Hardware. Multi-point locking hardware engages along the panel height, not just a single latch point at the handle. That matters in Los Angeles, where a sliding door is a common entry point. The stainless bearing trolleys are also tamper-resistant from the exterior when the door is locked.

Color & Glass Options

Color choice on a door this size sets the tone for the whole rear elevation. Premium Black and Pure White dominate contemporary Los Angeles projects. Black frames against white stucco or white frames against dark siding are the two looks we quote most often. Anodized Silver is the move for true modern minimalism. It’s also the most forgiving finish around coastal salt. Bronze reads traditional or Italianate and pairs well with homes in Hancock Park or Larchmont. Champagne is the soft-metal option that warms up a space without going dark. Teak Wood delivers a wood look without the maintenance of actual wood, useful for HOAs or historic districts that require wood-framed aesthetics.

Glass side: Clear is straightforward. Low-E is the one we recommend for most Los Angeles homes because it cuts cooling loads without tinting the view. Frosted and Obscure are for bathrooms, entries, or side-return panels where you want light but not eyesight. Black Tint and Gray Tint cut glare and heat and give the glass a dramatic look, especially on south-facing exposures in the San Fernando Valley.

Installation by Hale Windows & Doors in Los Angeles

A door this large is only as good as the installation. Period. We’ve replaced VLX-type doors installed by other contractors where the frame was half a degree out of level and the panels never glided right. That’s not a product failure. That’s an installation failure. And here’s what matters most: if the installation doesn’t meet AAMA standards, the manufacturer warranty can be voided. You don’t want to find that out three years later when a bearing fails and the original installer has changed phone numbers.

Our installation process for the VLX 138 Panoramic Sliding Door in Los Angeles follows a set sequence. First, we do a pre-installation inspection of the rough opening. We’re checking the framing, the subfloor, and the condition of the water-resistive barrier. Then we set the frame level, plumb, and square, using shims and taking measurements at multiple points along the sill and jambs. That’s non-negotiable on a 20-to-36-foot span.

Next comes the sealing. Every perimeter joint gets AAMA 812 low-expansion foam. Interior and exterior. Then exterior sealant at the flange or fin, interior sealant at the drywall return. The installation is performed to AAMA 2400/2410 standard, which covers the full practice of fenestration installation for residential aluminum products.

After the panels are hung and the hardware adjusted, we run a water test on the sill and frame. Then we cycle every panel at least twenty times, full travel in each direction, while watching for binding or drift. Then final cleanup, which includes removing all the glazing stickers and protective film, vacuuming the track, and wiping the glass. You get a door ready to live with, not a construction project to finish.

Los Angeles specifics: our building code requires specific wind-load documentation for large openings, and if you’re in a wildfire hazard zone, the glazing requirements change. We handle the paperwork. We know which inspectors want what. That’s part of why hiring a local Los Angeles installer matters. And if you’re replacing an existing slider, we handle the old-door haul-away and the lead-safe practices required on pre-1978 homes.

Frequently Asked Questions — VLX 138 Panoramic Sliding Door

What is the lead time for the VLX 138 Panoramic Sliding Door? Lead time is typically 6 to 8 weeks from final measurement and order confirmation. Custom finishes or impact-rated glass can push toward 10 weeks. We lock pricing and slot your installation date when the order is placed. Call (252) 675-6980 to start the measurement process and get a firm delivery window.

Does the VLX 138 qualify for energy tax credits? Yes, in many cases. The VLX 138 is NFRC-rated, and when ordered with qualifying Low-E glass packages, it can meet the energy performance criteria for federal energy efficiency tax credits. We’ll provide the documentation you need for your accountant. Call (252) 675-6980 and ask us to pull the NFRC values for your glass configuration.

What warranty comes with the Panoramic Sliding Door? The VLX 138 carries a manufacturer warranty on the frame, glass seal, and hardware, and our labor warranty covers the installation itself. The critical detail: the manufacturer warranty is only valid when the door is installed per AAMA standards by an authorized partner. Hale Windows & Doors is an authorized ViewLux installation partner in Los Angeles. Your warranty is intact when we finish.

Can I customize the size? Yes. The VLX 138 is fabricated per project, not pulled off a shelf. Panel count, panel width, and overall opening width are all custom. The 36-foot maximum span is the ceiling, not the standard. Most Los Angeles installations we quote are between 12 and 24 feet wide. We measure, we confirm, and the door is built to those numbers.

How do I maintain aluminum frames? Wash the frame and track twice a year with mild soap and water. Don’t use abrasive cleaners or pressure washers, especially on painted finishes. Vacuum the bottom track regularly, especially after Santa Ana winds push grit into the channel. Check the weep holes at the sill every few months and clear them with a soft brush. The stainless bearings are sealed and don’t require lubrication. If a panel ever feels stiffer than normal, call us before forcing it. Call (252) 675-6980 if something doesn’t feel right.

Get a Quote — VLX 138 Panoramic Sliding Door in Los Angeles

If you’re planning a remodel, addition, or replacement in Los Angeles, let’s measure your opening and talk through the configuration that fits your home and budget. Quotes are free. On-site measurements are free. You’ll get a written line-item price and a straight answer on lead time. Call Hale Windows & Doors at (252) 675-6980 to schedule yours.

Written by the team at Hale Windows & Doors, authorized ViewLux installation partner, serving Los Angeles and surrounding communities.
